Aerofly RC 8 – Download Auto-Towing Mod 5


English

Description
The Aerofly RC 8 has an option to fly with two people on one computer. An towing option is also provided but you need the second person beside you or you have to fly two planes at once… This modification provides a modified Wilga and Beaver towing airplane that has an autopilot build in. One of the players can then be replaces by the autopilot, preferably player 2. The autopilot will straighten the rope and slowly increase power. It will steer the aircraft down the runway, take off, retract the flaps and fly a left hand endless circle. Even in moderate wind or turbulence this autopilot will level itself out and continues to fly quite well. Because the autopilot does not have any collision avoidance system in some start positions he might just fly straight into an obstacle. Also the autopilot has no access to the information that the second player has released the rope. He will keep on climbing unless you assign “AUX-1” in the advanced control settings for player two. That will deactivate the autopilot and player 2 could have full control over the aircraft again. If you don’t have any controller for player 2 then the aircraft will just get uncontrolled inputs and probably crash eventually.

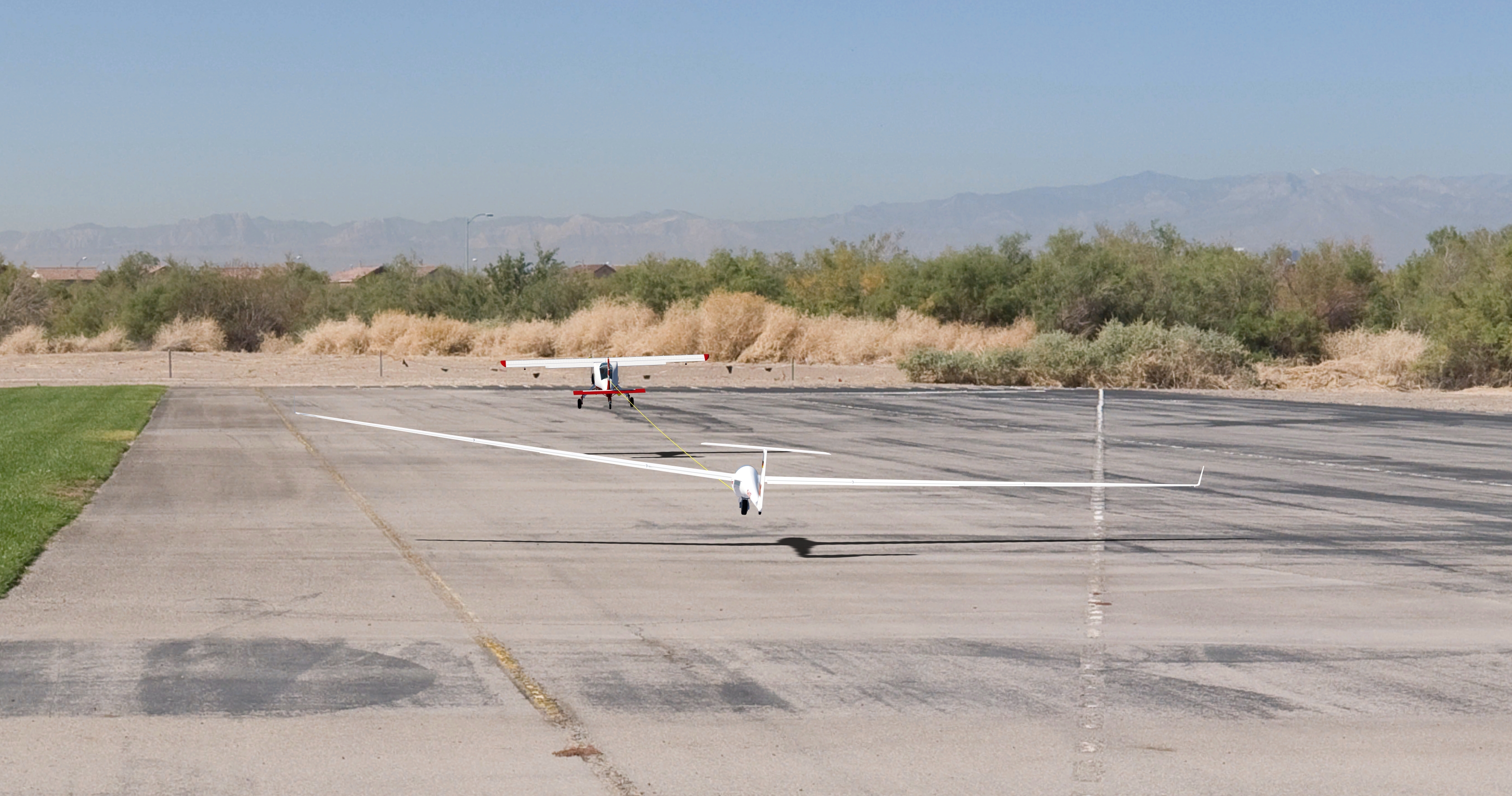

F-Schlepp mit der Wilga und der ASH31

Download

Last Updated 30th March, 2019

16.07 KB - downloaded 1161 times

Installation
1. In the Aerofly RC 8 User-Folder (“C:\Users\%USERNAME%\Documents\aerofly RC 8\”) open the folder “aircraft_mod” or create a new one if it doesn’t exist yet.
2. Download the zip file to your local hard drive and decompress it.
3. Move the two folders “wilga” and “beaver” over to the aircraft_mod folder
4. In the Aerofly RC 8 select the Wilga or Beaver airplane. On the right hand column under the large preview image there are options to change the livery and also to change the modification of the aircraft. Go ahead and select the auto towing modification and press the load button. You should see the airplane but it should do its own thing and take off and fly as long as “AUX-1” is not activated. Installation successful!

Before starting to tow
Select a wind speed less than 5 m/s. Reset the rope length to the default 20 m in the simulation settings if you changed it previously.
Assign “AUX-1(1-way)” for player two if you want to take over manual control, e.g. to land the towing plane.

Usage
1. Load your desired glider as aircraft 1.
2. Load the auto towing mod as the second aircraft for player 2. Remember to change the modification of the Wilga or Beaver on the right hand column below the large preview image.
3. Press the for the split screen “i” twice so that only player 1 to toggle the split-screen, so that only the glider side is shown.
4. Press the Button “tab” to start the towing. Fly behind the towing plane and release your rope when ever you want. By pressing the assigned input for “AUX-1” the autopilot will use manual input again and you can stop climbing, let it crash or land it manually.

Have fun! If there are questions left please write them in the comments below.


Deutsch

Beschreibung
Im Aerofly RC 8 besteht die Möglichkeit zu zweit an einem PC einen F-Schlepp zu üben.
Mit diesem automatisiertem Flugzeug ist es sogar möglich auf die zweite Person zu verzichten, um ganz allein jederzeit einen F-Schlepp zu üben. Der Auto-Pilot steuert hierbei die Schleppmaschine.
Sie strafft selbstständig das Seil, beschleunigt, hebt mit dem Segler im Schlepp ab und dreht dann einen kontinuierlichen Linkskreis.
Der Autopilot ist in der Lage Turbulenzen durch den Wind oder unsauberes Fliegen des Seglers gut auszusteuern, sodass man selbst bei mäßigem Wind noch gut schleppen kann.
Da der Autopilot ein vordefiniertes Muster abfliegt hat er nicht die Möglichkeit Hindernissen auszuweichen. Nicht jede F-Schlepp-Position ist daher geeignet.
Auch hat der Autopilot keinen Zugriff um zu überprüfen, dass der Segler ausgeklinkt hat. Er wird weiter seine Kreise drehen bis sie die manuelle Steuerung aktivieren mit der Sonderfunktion “AUX-1” (ganz unten bei Reglereinstellungen-Profi).

F-Schlepp mit der Wilga und der ASH31

Download

Zuletzt aktualisiert am 30. März, 2019

16.07 KB - downloaded 1161 times

Installation
1. Im Aerofly RC 8 User-Folder (“C:\Users\%USERNAME%\Documents\aerofly RC 8\”) öffnen Sie den Ordner “aircraft_mod” oder erzeugen Sie ihn ggf. neu.
2. Laden Sie die Zip-Datei auf ihre Festplatte herunter und entpacken Sie sie.
3. Verschieben Sie die zwei Ordner “beaver” und “wilga” in das “aircraft_mod” Verzeichnis.
4. Zum Testen im Aerofly RC 8 die Modifikation laden: In der rechten Spalte des Auswahlfensters unterhalb des großen Vorschaubildes das Drop-Down-Menü benutzen um die Konfiguration auf den Auto-Schlepper umschalten.

Vor dem Schlepp-Flug
Stellen Sie den Wind auf weniger als ca. 5 m/s ein. Mehr Wind führt dazu, dass der Schlepper nicht mehr ordentlich funktionieren kann.
Stellen Sie die Seillänge in den Simulationseinstellungen auf den Standardwert von 20 m zurück falls Sie diese geändert haben.
Um später auf manuelle Steuerung umschalten zu können gehen sie in den Steuerungseinstellungen (Steuergerät Spieler 2, Regler zuweisen (Profi)) ganz unten in der Liste auf der linken Seite auf das kleine Plus-Symbol “AUX” und weisen Sie der Funktion “AUX-1(1-way)” eine Taste auf der Tastatur oder einen Joystick-Knopf zu.

Benutzung
1. Laden Sie den Segler als Modell 1.
2. Laden Sie die Schleppmaschine als Modell zwei. Dazu wählen Sie die Wilga bzw. DHC Beaver als Flugzeug an und schalten auf der rechten Seite des Auswahlmenüs, unterhalb des Vorschaubildes, die Konfiguration um.
3. Drücken Sie für den Splitscreen “i” zweimal, wenn sie nur ihren Segler sehen möchten.
4. Drücken Sie die Taste “Tab” auf der Tastatur um den F-Schlepp zu beginnen. Dies können Sie mehrmals machen um die verschiedenen F-Schlepp Startpositionen durchzuschalten oder den F-Schlepp neu zu starten.
Drücken Sie Ihre eingestellte Taste für die Funktion AUX-1(1-way) um den Autopiloten abzuschalten, z.B. nachdem Sie mit dem Segler ausgeklinkt haben.

Viel Erfolg bei der Installation und viel Spaß beim Schleppen!
Sollten Sie nach dieser Anleitung noch Fragen haben schreiben Sie diese bitte in die Kommentare unten.
